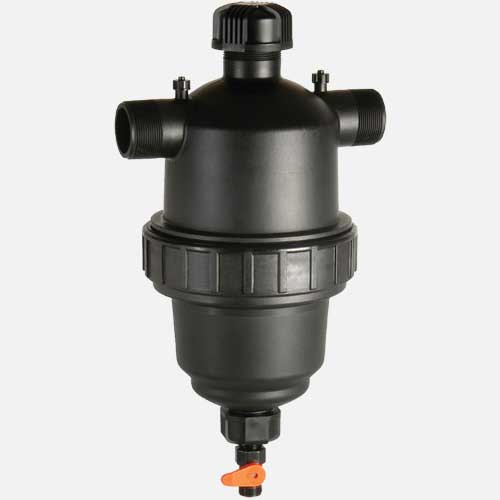

Amiad Plastic 2" T Filter 40000 LPH

Amiad Plastic 2" T Filter 40000 LPH

£349.20
£349.20
Sold out
Tax included. Shipping calculated at checkout.
Amiad 2 inch T Filter Body 2" Male BSP Thread Up To 40 Cubic Metres Per Hour   Amiad filter bodies are a strong easy to install and clean filter. ...
15 people are viewing this right now

Availability: Low stock: 1 left

Vendor: Amiad Filters
SKU: V422010

Shipping & Returns

£4.99 Standard 5 day shipping UK Mainland Excluding Highlands

DPD Next Day Service £8.99

View full product details

Amiad 2 inch T Filter Body 2" Male BSP Thread Up To 40 Cubic Metres Per Hour



Amiad filter bodies are a strong easy to install and clean filter.  The construction is tough and very strong making this a very durable product for commercial or domestic installation

Screen Filter

 The area of a screen filter is 465 square centimetres which offer a large area thus reducing the cleaning frequency and reduces pressure loss.    Screen filters are very easy and quick to clean.



  • Maximum pressure 10 bar
  • Maximum flow rate40 cubic metres per hour
  • Max working temperature 60º centigrade
  • Filter area up to 465cm² screen

Technical Specifications


Filter Type  2''T

General Data
Maximum flow rate* 25 m3/h (110 US gpm)
Inlet/Outlet diameter 2” (50 mm)
Standard filtration degrees 3500, 2500, 1500, 800, 500, 300, 250, 200, 130, 100, 80, 50, micron
Max. working pressure 10 bar (145 psi)
Max. working temperature 60°C (140°F)
Weight (empty) Screen = 3.6 kg (7.9 lb)
Discs = 4.4 kg (9.7 lb)
* Consult amiad for optimum flow depending on filtration degree & water quality.
** Chemical resistant filters are rated to 8 bar.

Filter Element Data
Filter area Screen = 465 cm² (72 in²)
Discs = 790 cm² (122 in²)
Filter Element type Weave Wire Screen, Perforated Screen, Disc Element
Screen types N/A

Construction Materials*
Filter housing Polyamide + Glass Fibers
Filter Lid Polyamide + Glass Fibers
Tightening nut Polyamide + Glass Fibers
Clamp N/A
Housing seal NBR
Screen Construction = Polypropylene + Glass Fibers Mesh = St. St. Seals = NBR
Discs Construction = Polypropylene Grooved; discs = polyethylene; Seals = NBR
* Amiad offers a variety of construction materials. Consult us for specifications.



Filter Body Dimesions and installation instructions


 Amiad-2 inch-filter-dimensions























screen and disk filter
