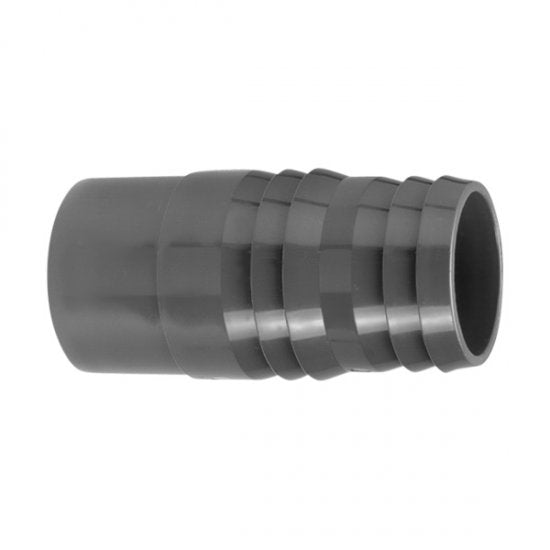

PVC 50mm Glue - 2" Flexible Hose End

PVC-U is a Polyvinyl chloride without plasticizers that is extremely suitable for very wide applications, such as:

• Chemical installations
• Portable water applications
• Food and beverage industry
• Sanitary and swimming pool technology
• Irrigation

The main advantages of PVC-U are:

• Excellent chemical resistance
• Corrosion resistance
• Easy installation
• Durability
• Low maintenance


Pressure and temperature diagram

PVC-U has very good properties in a temperature range of 0°C to 60°C. At lower temperatures the impact resistance clearly decreases.

Figure 1

Figure 1 shows the maximum operating pressure for PN16, PN10 and PN6 fittings. This information is based on a lifespan of 50 years with a safety factor of 2.5.

Chemical Resistance

The chemical resistance of PVC-U depends on the conditions of use and must be assessed for each situation.
For more information, see the chemical resistance list.

Dimensions and standards PVC-U

The fittings correspond to the following standards:

• DIN 8063
• ISO 727
• KIWA nr. BRL-K 504
