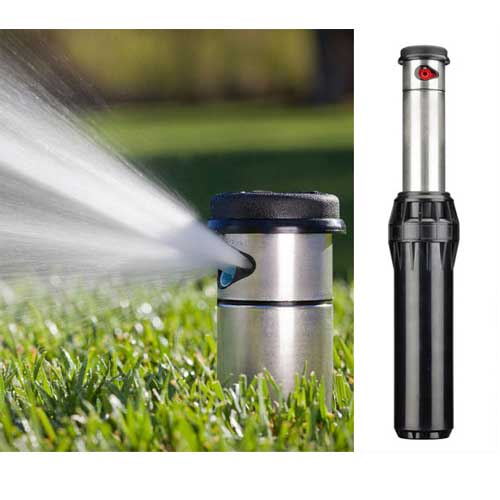

Hunter I-40 Full Circle 6" Stainless Opp Nozzles

Hunter I-40 Full Circle 6" Stainless Opp Nozzles

£115.32
£115.32
Sold out
Tax included. Shipping calculated at checkout.
Hunnter 6" Stainless Steel Riser I-40 Pop Up Rotor Full Circle With Opposing Nozzles The I-40 Rotor is a standard for sports pitches when a turf cap is installed The...
24 people are viewing this right now

Availability: Low stock: 9 left

Vendor: Hunter
SKU: HSI4006SSO

Shipping & Returns

£4.99 Standard 5 day shipping UK Mainland Excluding Highlands

DPD Next Day Service £8.99

View full product details

Hunnter 6" Stainless Steel Riser I-40 Pop Up Rotor Full Circle With Opposing Nozzles

The I-40 Rotor is a standard for sports pitches when a turf cap is installed

The I-40 is a tough commercial rotor that delivers water with accuracy and efficiency at distances up to 23.2 m. Featuring diverse three-port nozzle options, a non-strippable drive, and a thick rubber cover built to prevent injury; it's no wonder this rotor is found in more stadiums than any other in the world. With the strength of stainless steel, the I-40 is built to last in the harshest sports, public park, and commercial environments. If efficiency, effective irrigation, and beautiful results are the goal, the I-40 is the irrigation professional's best solution.

  • Models stainless riser:  15 cm

  • 360 degree with opposing nozzles

  • Factory installed rubber cover

  • Nozzle choices: 12

  • Nozzle ranges I-40: #8 to #25

  • Nozzle ranges I-40-ON: #15 to #28

  • Quick check arc mechanism

  • Warranty period: 5 years

  • Water lubricated gear-drive

The opposing nozzle design offers excellent water distribution. With primary and secondary nozzles on opposing sides of the turret, streams arc in opposite directions as the sprinkler rotates for outstanding mid-range and close-in watering.

Operating Specifications

  • Radius I-40: 13.1 to 21.3 m
  • Radius I-40-ON: 15.2 to 23.2 m
  • Flow rate I-40: 1.63 to 6.84 m3/hr; 27.2 to 114.1 l/min
  • Flow rate I-40-ON: 2.75 to 7.76 m3/hr; 45.8 to 129.4 l/min
  • Recommended pressure range: 2.5 to 7 bar; 250 to 700 kPa
  • Operating pressure range: 2.5 to 7.0 bar; 250 to 700 kPa
  • Precipitation rates: 15 mm/hr approx.
  • Nozzle trajectory: 25 degrees

I-40 Nozzle Performance Data
View Nozzle
Nozzle Pressure Radius Flow Precip mm/hr
  bar kPa m m³/hr l/min
8 •
(40) Lt. Brown
 2.5 250 13.1 1.63 27.2 19 22
3.0 300 13.4 1.80 30.0 20 23
3.5 350 13.7 1.94 32.3 21 24
4.0 400 14.0 2.06 34.4 21 24
4.5 450 14.0 2.18 36.3 22 26
5.0 500 14.3 2.29 38.2 22 26
5.5 550 14.6 2.41 40.2 23 26
10 •
(41) Lt. Green
 3.0 300 14.6 2.20 36.6 21 24
3.5 350 14.9 2.37 39.4 21 24
4.0 400 15.2 2.52 42.0 22 25
4.5 450 15.5 2.67 44.5 22 25
5.0 500 15.5 2.81 46.8 23 27
5.5 550 15.8 2.96 49.3 24 27
6.0 600 16.2 3.08 51.4 24 27
13 •
(42) Lt. Blue
 3.0 300 14.9 2.36 39.4 21 24
3.5 350 15.2 2.55 42.6 22 25
4.0 400 15.5 2.73 45.5 23 26
4.5 450 15.5 2.90 48.3 24 28
5.0 500 15.8 3.06 51.0 24 28
5.5 550 16.2 3.23 53.9 25 29
6.0 600 16.5 3.38 56.3 25 29
15 •
(43) Grey
 3.0 300 16.2 2.93 48.8 22 26
3.5 350 16.5 3.19 53.2 24 27
4.0 400 16.8 3.44 57.3 24 28
4.5 450 17.1 3.67 61.2 25 29
5.0 500 17.4 3.89 64.9 26 30
5.5 550 18.0 4.14 68.9 26 30
6.0 600 18.3 4.34 72.4 26 30
6.2 650 18.3 4.43 73.8 26 31
23 •
(44) Dk. Green
 3.5 350 18.6 4.48 74.6 26 30
4.0 400 18.9 4.76 79.4 27 31
4.5 450 19.2 5.03 83.9 27 32
5.0 500 19.5 5.29 88.1 28 32
5.5 550 19.8 5.56 92.7 28 33
6.0 600 20.1 5.79 96.5 29 33
6.2 620 20.1 5.89 98.1 29 34
6.5 650 20.1 6.01 100.2 30 34
6.9 690 20.4 6.19 103.2 30 34
25 •
(45) Dk. Blue
 3.5 350 19.8 4.98 83.0 25 29
4.0 400 20.1 5.33 88.7 26 30
4.5 450 20.4 5.65 94.2 27 31
5.0 500 20.7 5.96 99.3 28 32
5.5 550 21.0 6.29 104.9 28 33
6.0 600 21.0 6.57 109.6 30 34
6.2 620 21.0 6.69 111.5 30 35
6.5 650 21.3 6.84 114.1 30 35
6.9 690 21.3 7.07 117.8 31 36

Notes:
All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

I-40 High Speed Nozzle Performance Data
View Nozzle
Nozzle Pressure Radius Flow Precip mm/hr
  bar kPa m m³/hr l/min
8 •
(40) Lt. Brown
 2.5 250 12.2 1.63 27.2 22 25
3.0 300 12.5 1.80 30.0 23 27
3.5 350 12.8 1.94 32.3 24 27
4.0 400 12.8 2.06 34.4 25 29
4.5 450 13.1 2.18 36.3 25 29
5.0 500 13.4 2.29 38.2 25 29
5.5 550 13.4 2.41 40.2 27 31
10 •
(41) Lt. Green
 3.0 300 13.4 2.20 36.6 24 28
3.5 350 13.7 2.37 39.4 25 29
4.0 400 14.0 2.52 42.0 26 30
4.5 450 14.0 2.67 44.5 27 31
5.0 500 14.3 2.81 46.8 27 32
5.5 550 14.6 2.96 49.3 28 32
6.0 600 14.6 3.08 51.4 29 33
13 •
(42) Lt. Blue
 3.0 300 13.7 2.36 39.4 25 29
3.5 350 14.0 2.55 42.6 26 30
4.0 400 14.3 2.73 45.5 27 31
4.5 450 14.3 2.90 48.3 28 33
5.0 500 14.6 3.06 51.0 29 33
5.5 550 14.9 3.23 53.9 29 33
6.0 600 14.9 3.38 56.3 30 35
15 •
(43) Grey
 3.0 300 15.2 2.93 48.8 25 29
3.5 350 15.5 3.19 53.2 26 30
4.0 400 15.8 3.44 57.3 27 32
4.5 450 15.8 3.67 61.2 29 34
5.0 500 16.2 3.89 64.9 30 34
5.5 550 16.5 4.14 68.9 31 35
6.0 600 16.5 4.34 72.4 32 37
6.2 620 16.5 4.43 73.8 33 38
23 •
(44) Dk. Green
 3.5 350 16.8 4.48 74.6 32 37
4.0 400 17.4 4.76 79.4 32 36
4.5 450 17.7 5.03 83.9 32 37
5.0 500 17.7 5.29 88.1 34 39
5.5 550 18.0 5.56 92.7 34 40
6.0 600 18.3 5.79 96.5 35 40
6.2 620 18.6 5.89 98.1 34 39
6.5 650 18.6 6.01 100.2 35 40
6.9 690 18.6 6.19 103.2 36 41
25 •
(45) Dk. Blue
 3.5 350 17.4 4.98 83.0 33 38
4.0 400 18.0 5.33 88.7 33 38
4.5 450 18.3 5.65 94.2 34 39
5.0 500 18.6 5.96 99.3 34 40
5.5 550 18.9 6.29 104.9 35 41
6.0 600 19.2 6.57 109.6 36 41
6.2 620 19.5 6.69 111.5 35 41
6.5 650 19.5 6.84 114.1 36 42
6.9 690 19.5 7.07 117.8 37 43

Notes:
All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

I-40 Dual Opposing Nozzle
Performance Data
View Nozzle
Nozzle Pressure Radius Flow Precip mm/hr
  bar kPa m m³/hr l/min
15 •
Grey
 3.0 300 15.2 2.75 45.8 12 14
3.5 350 15.8 2.91 48.5 12 13
4.0 400 16.2 3.06 51.0 12 14
4.5 450 16.8 3.20 53.3 11 13
5.0 500 17.1 3.32 55.4 11 13
5.5 550 17.4 3.46 57.7 11 13
6.0 600 17.7 3.58 59.6 11 13
6.2 620 17.7 3.62 60.4 12 13
18 •
Red
 3.0 300 17.4 2.90 48.3 10 11
3.5 350 17.7 3.15 52.5 10 12
4.0 400 18.0 3.38 56.4 10 12
4.5 450 18.0 3.61 60.1 11 13
5.0 500 18.3 3.82 63.7 11 13
5.5 550 18.9 4.05 67.5 11 13
6.0 600 19.2 4.25 70.8 12 13
6.2 620 19.2 4.33 72.1 12 14
6.5 650 19.5 4.43 73.9 12 13
20 •
Dk. Brown
 3.5 350 18.3 3.98 66.2 12 14
4.0 400 18.9 4.26 71.1 12 14
4.5 450 19.2 4.54 75.6 12 14
5.0 500 19.5 4.80 80.0 13 15
5.5 550 20.1 5.08 84.7 13 15
6.0 600 19.8 5.32 88.7 14 16
6.2 620 19.8 5.42 90.4 14 16
6.5 650 20.1 5.55 92.5 14 16
6.9 690 20.1 5.74 95.7 14 16
23 •
Dk. Green
 3.5 350 18.9 4.23 70.6 12 14
4.0 400 19.5 4.55 75.8 12 14
4.5 450 19.8 4.85 80.8 12 14
5.0 500 20.1 5.14 85.6 13 15
5.5 550 20.4 5.45 90.8 13 15
6.0 600 20.7 5.71 95.1 13 15
6.2 620 20.7 5.82 97.0 14 16
6.5 650 20.7 5.96 99.4 14 16
6.9 690 21.0 6.17 102.9 14 16
25 •
Dk. Blue
 3.5 350 19.5 4.60 76.7 12 14
4.0 400 20.1 4.92 82.1 12 14
4.5 450 20.4 5.23 87.2 13 14
5.0 500 20.7 5.52 92.0 13 15
5.5 550 21.0 5.84 97.3 13 15
6.0 600 21.3 6.10 101.7 13 15
6.2 620 21.3 6.22 103.6 14 16
6.5 650 21.3 6.36 106.0 14 16
6.9 690 21.6 6.57 109.5 14 16
28 •
Black
 3.5 350 19.8 5.73 95.5 15 17
4.0 400 20.4 6.07 101.1 15 17
4.5 450 21.0 6.38 106.4 14 17
5.0 500 21.3 6.68 111.3 15 17
5.5 550 21.9 7.00 116.7 15 17
6.0 600 22.3 7.27 121.1 15 17
6.2 620 22.3 7.38 122.9 15 17
6.5 650 22.6 7.52 125.3 15 17
6.9 690 23.2 7.73 128.8 14 17

Note:
All precipitation rates calculated for 360 degree operation.
