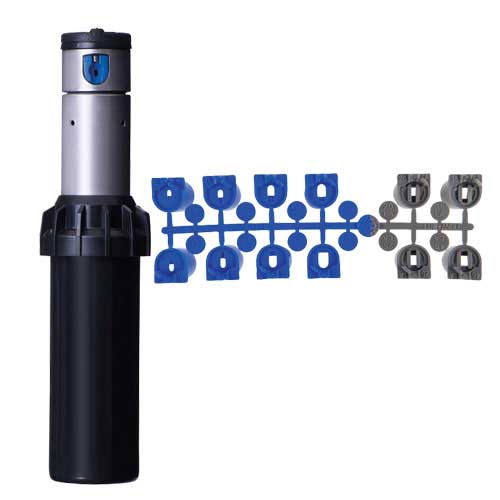

Hunter i20 Part and Full Circle Pop Up Rotor 4 inch Stainless Steel Riser

Hunter i20 Part and Full Circle Pop Up Rotor 4 inch Stainless Steel Riser

£37.25
£37.25
Sold out
Tax included. Shipping calculated at checkout.
Hunter i20 Pop Up Rotor Stainless Steel Riser  A High Performance Rotor with the Diversity and Efficiency for Any Site With 22 nozzle choices, a 4.9 to 14.0 m radius, the I-20...
28 people are viewing this right now

Availability: Out of stock

Vendor: Hunter
SKU: CHSI2004SS

Shipping & Returns

£4.99 Standard 5 day shipping UK Mainland Excluding Highlands

DPD Next Day Service £8.99

View full product details

Hunter i20 Pop Up Rotor Stainless Steel Riser

A High Performance Rotor with the Diversity and Efficiency for Any Site

With 22 nozzle choices, a 4.9 to 14.0 m radius, the I-20 is an indispensable rotor.

Whether you’ve got a small area, sandy soil, or a mix of shrubs and grass, the I-20 is ready to water with efficiency and reliability. Recent improvements include automatic arc return; non-reversing 360, from 50 to 360 degrees; and a non-strippable, vandal-proof drive mechanism that prevents gear stripping and saves repair costs. Adding FloStop® control, easy through-the-top arc adjustment, and a standard drain-check valve all equate to a rotor that stands second-to-none in its class.

  • Arc adjustment from 50 - 360 degrees
  • Water flow adjustment in head 0 litres to full flow
  • Stainless steel riser
  • Water lubricated gears
  • 5 year warranty
  • anti vandal tamper resistant
  • radius 4.9 - 14 metres
  • pressure 1.7 - 4.5 bar
  • 3/4" female thread inlet connection
  • Drain Check valve
  • Flow rate 0.07-3.23 Cubic Metres Per Hour














PGP Ultra / I-20 Blue Standard
Nozzle Performance Data
View Nozzle
Nozzle Pressure Radius Flow Precip mm/hr
  bar kPa m m³/hr l/min
1.5 •
Blue
 1.7 170 8.8 0.27 4.5 7 8
2.0 200 9.1 0.29 4.8 7 8
2.5 250 9.4 0.32 5.4 7 8
3.0 300 9.8 0.35 5.9 7 9
3.5 350 9.8 0.38 6.4 8 9
4.0 400 9.8 0.41 6.8 9 10
4.5 450 9.4 0.43 7.2 10 11
2.0 •
Blue
 1.7 170 10.1 0.32 5.4 6 7
2.0 200 10.1 0.35 5.8 7 8
2.5 250 10.1 0.39 6.5 8 9
3.0 300 10.4 0.43 7.2 8 9
3.5 350 10.4 0.47 7.8 9 10
4.0 400 10.4 0.50 8.3 9 11
4.5 450 10.4 0.53 8.8 10 11
2.5 •
Blue
 1.7 170 10.1 0.39 6.6 8 9
2.0 200 10.4 0.43 7.1 8 9
2.5 250 10.7 0.48 8.0 8 10
3.0 300 10.7 0.54 8.9 9 11
3.5 350 10.7 0.58 9.7 10 12
4.0 400 10.7 0.62 10.4 11 13
4.5 450 10.7 0.66 11.1 12 13
3.0 •
Blue
 1.7 170 10.7 0.50 8.4 9 10
2.0 200 10.7 0.54 9.1 10 11
2.5 250 11.0 0.61 10.2 10 12
3.0 300 11.6 0.68 11.4 10 12
3.5 350 11.9 0.74 12.3 10 12
4.0 400 11.9 0.79 13.2 11 13
4.5 450 11.9 0.84 14.0 12 14
4.0 •
Blue
 1.7 170 11.3 0.68
