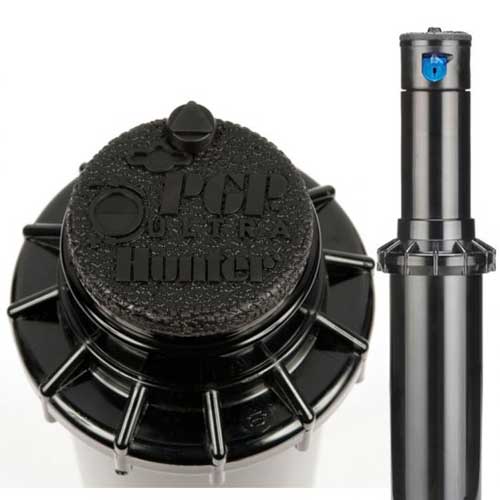

Hunter PGP Ultra Full Circle Pop Up With Check Valve

This is the same as the standard PGP pop up apart from the check valve fitted to the unit.  The check valve prevents the water in the supply pipe running out of the system via the lowest pop up.  This is of particular use if the lawn is on a slope

• Flow range 0.07 - 3.42 cubic meters per hour
• Height 4 "
• Radius 0.07 - 14 meters
• Operating pressure 1.7 - 4.5 bar
• Anti drain check valve to protect gear box
• water lubricated gears
• arc adjustment 50 - 360 degrees
• Precipitation rate 10 mm per hour
• 3/4" BSP Female Inlet

PGP Ultra / I-20 Blue Standard Nozzle Performance Data View Nozzle
Nozzle	Pressure		Radius	Flow		Precip mm/hr
	bar	kPa	m	m³/hr	l/min
1.5 • Blue	1.7	170	8.8	0.27	4.5	7	8
	2.0	200	9.1	0.29	4.8	7	8
	2.5	250	9.4	0.32	5.4	7	8
	3.0	300	9.8	0.35	5.9	7	9
	3.5	350	9.8	0.38	6.4	8	9
	4.0	400	9.8	0.41	6.8	9	10
	4.5	450	9.4	0.43	7.2	10	11
2.0 • Blue	1.7	170	10.1	0.32	5.4	6	7
	2.0	200	10.1	0.35	5.8	7	8
	2.5	250	10.1	0.39	6.5	8	9
	3.0	300	10.4	0.43	7.2	8	9
	3.5	350	10.4	0.47	7.8	9	10
	4.0	400	10.4	0.50	8.3	9	11
	4.5	450	10.4	0.53	8.8	10	11
2.5 • Blue	1.7	170	10.1	0.39	6.6	8	9
	2.0	200	10.4	0.43	7.1	8	9
	2.5	250	10.7	0.48	8.0	8	10
	3.0	300	10.7	0.54	8.9	9	11
	3.5	350	10.7	0.58	9.7	10	12
	4.0	400	10.7	0.62	10.4	11	13
	4.5	450	10.7	0.66	11.1	12	13
3.0 • Blue	1.7	170	10.7	0.50	8.4	9	10
	2.0	200	10.7	0.54	9.1	10	11
	2.5	250	11.0	0.61	10.2	10	12
	3.0	300	11.6	0.68	11.4	10	12
	3.5	350	11.9	0.74	12.3	10	12
	4.0	400	11.9	0.79	13.2	11	13
	4.5	450	11.9	0.84	14.0	12	14
4.0 • Blue	1.7	170	11.3	0.68	11.3	11	12
	2.0
