RollcarT Travelling Lawn Sprinkler

Perrot's popular travelling sprinkler with full or part circle operation makes a great sports field irrigator.  A wire is pulled out and staked down and the highly efficient water turbine automatically winds the wire back on to its drum pulling the unit along

• Designed for sports grounds and very large turf areas
• The unit pulls itself along by winding the cable back in automatically
• Sprinkler radius is 18 metres or 36 metre diameter if used at 360º
• Speed can be adjusted from 10 to 20 metres per hour
• Minimum operating pressure = 3.5 bar
• Flow Rate = 3 Cubic Metres Per Hour
• Accurate water distribution from Perrots Ze impact sprinkler
• Size 77 x 47 x 40 cm
• Automatically shuts off at the end of the run
• Use with 1" hose pipe
• Diameter 34 - 38m at 3-7 bar pressure
• 135m Steel cable waters 183cm long runs

The travelling sprinkler consists of a water powered wheeled tractor unit to move the sprinkler along. The unit is placed at one end of the pitch, and a steel wire run out to a sturdy post at the other end, as the tractor unit travels slowly down the length of the pitch, the sprinkler rotates and waters half of the pitch width. Generally 1/2 of a pitch is watered each night which puts down the equivalent of one weeks rainfall - allowing a single travelling sprinkler to water 3 or 4 pitches a week. Mounted on top of the tractor cart is a variable diameter sprinkler.

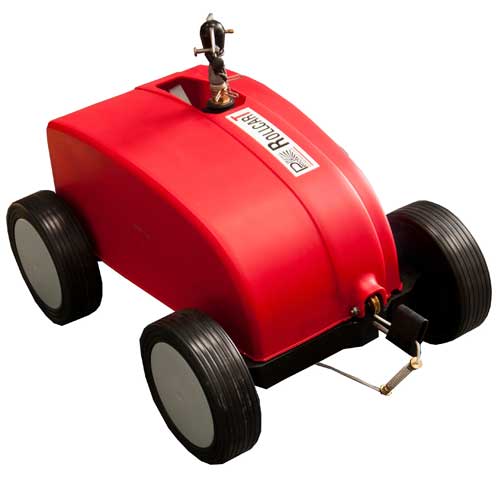

Red cover shown in picture not included
